Push Tray, the No. 1 Single-Item Sorting Solution
The Push Tray sorter has two variants: the Single Push Tray and the Twin Push Tray. The Twin Push Tray sorter offers even more flexibility and capacity. Both are high-throughput single-item sorters. All our sorting solutions can be seamlessly integrated with any existing WMS. The Push Tray sorter is already in use in 13 countries worldwide by leading names in the fashion industry, parcel & post, 3PL, and e-commerce. It’s safe to say that the Push Tray sorter is the winner in the logistics arena. Depending on the configuration, capacity ranges from 8,800 to 24,000 units per hour.
How Does a Push Tray Sorter Work?
The Push Tray sorter is a loop sorter with a dual-sided ejection system. Each tray features a slider positioned between two raised edges. By moving the slider to the left or right, items are automatically ejected into a predetermined exit. This allows each tray to eject items in two directions, effectively doubling the number of exits within a compact footprint.
Thanks to the precise coordination of all moving parts, the system prevents packaging materials from causing blockages. Polybags, packaging films, and other thin materials pass through smoothly without disruption.
Push Tray Sorter Specifications
The two types of Push Trays offer different options to meet various needs depending on your operational requirements. Thanks to its modular design and WMS integration, this system is flexible and adaptable for various applications.
Single Push Tray
- Capacity: 3,000 to 16,000 trays per hour
- Weight: 0.05–12 kg
- Min. item size: 40 x 40 x 1 mm
- Max. item size: 490 x 600 x 400 mm
Twin Push Tray
- Capacity: 7,000 to 24,000 trays per hour
- Weight: 0.05–20 kg
- Min. item size: 40 x 40 x 1 mm
- Max. item size: 690 x 600 x 350 mm
Flexible and error-free sorting
The Push Tray sorter offers a flexible sorting technique capable of accurately processing large volumes without errors. Built with durable materials, it requires minimal maintenance and operates at an exceptionally low noise level. Additionally, the Push Tray sorter is easy to integrate into existing logistics processes.
The Push Tray sorter is particularly suitable for processing:
Advantages of the Push Tray
- Both manual and fully automatic induction
- Higher volume, greater efficiency, fewer errors
- Fast ROI, low TCO
- Low noise level
- Minimal maintenance
Case Studies
The Twin Push Tray Sorter in action at one of our customers (e-commerce, 3PL). The sorter is equipped with double-deck sliding chutes. This video nicely shows the sorter in operation at our customer's site.
FAQ Push Tray Sorter
Specific questions or can't find your query? Contact us!
- Cost savings through a more efficient picking process (from single-item picking to batch picking)
- Proven technology across various industries worldwide
- Increased productivity with fewer staff
- High throughput
- Fast and error-free sorting
- Versatile
Yes, we ensure full compatibility with your existing WMS.
The Push Tray is internationally proven for:
- Clothing
- Shoes
- Books
- Polybags
- Pharmaceuticals
- E-commerce
- Residual mail
The Push Tray sorter is available in two versions:
- Single Push Tray
- Twin Push Tray
Processing capacity ranges from 3,000 to 24,000 UPH, depending on the type and configuration. The trays handle weights from 50g to 20kg.
The Push Tray is a loop sorter. Items enter at Point A and are pushed out at the desired Point B. TheTwin Push Tray can either sort two smaller items or one larger/heavier item. Items are enclosed on three sides for secure handling.

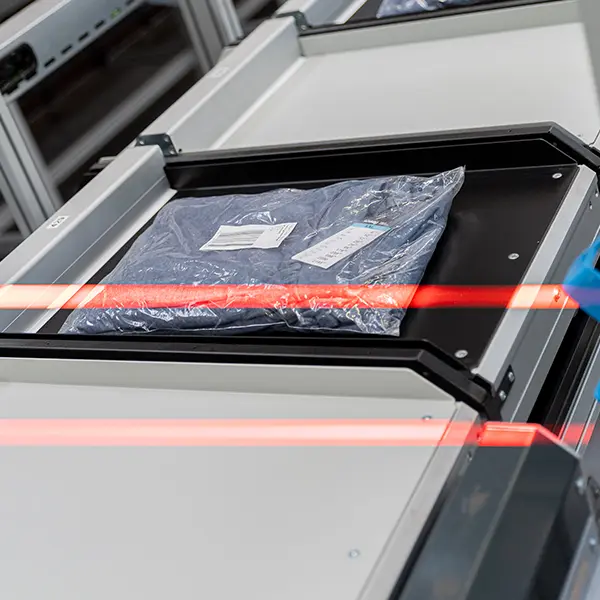

Each carrier has a tray with one or two sliders, which feature raised edges that act as a push bar. The anti-slip mat inside the tray moves in both directions, pushing the item onto a chute, where it falls into a box, bag, or container. This bidirectional ejection doubles the number of exits within the same footprint.
Regular maintenance is simple to perform in-house. This includes:
- Regular inspection of trays and running gear
- Checking sensors and scanners
- Keeping software up to date
- An annual major maintenance check by EuroSort Service is recommended (by appointment)
